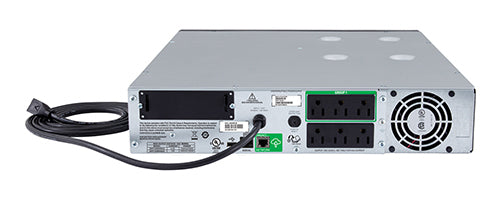

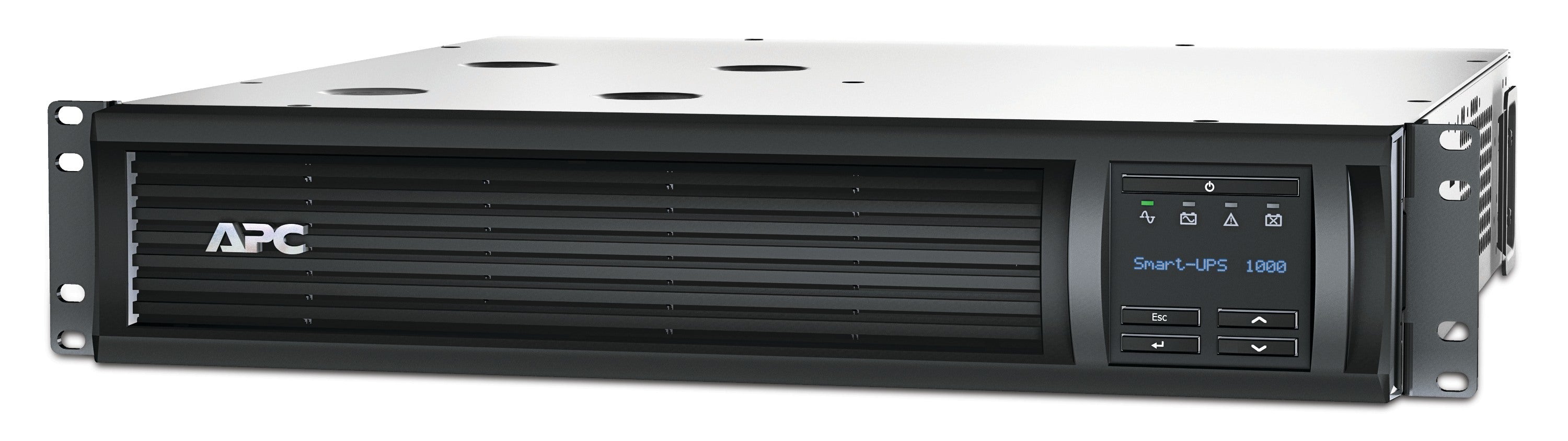

APC Smart-UPS SMT1000RM2UC 1000VA 700W 120V 2U Rackmount UPS with SmartConnect

APC Smart-UPS SMT1000RM2UC 1000VA 700W 120V 2U Rackmount UPS with SmartConnect

Protect servers, networking equipment, point-of-sale systems and other business-critical electronics with the APC Smart-UPS SMT1000RM2UC. This line-interactive rackmount UPS delivers 1000VA / 700W of power capacity with Automatic Voltage Regulation (AVR), pure sine-wave battery output, six NEMA 5-15R outlets and SmartConnect web-based management.

Key Features

• 1000VA / 700W power capacity
• 120V line-interactive UPS
• 2U rackmount form factor
• Pure sine-wave output on battery
• Automatic Voltage Regulation (AVR)
• 6 × NEMA 5-15R AC outlets
• NEMA 5-15P input plug
• SmartConnect / web-based management
• SmartSlot for compatible APC management cards
• Integrated LCD interface
• Single switched outlet group for rebooting and load management
• Built-in energy meter
• Green Mode for high operating efficiency
• Predictive battery replacement date
• Temperature-compensated battery charging
• Hot-swappable VRLA battery
• Automatic battery testing
• Cold-start capable
• 680-joule surge energy rating
• Short-circuit protection
• USB and serial interfaces
• Audible battery, low-battery and overload alarms
• Automatic restart

Reliable Rackmount Power Protection

The APC SMT1000RM2UC is designed for professional IT environments where dependable backup power and rack efficiency matter. Its compact 2U rackmount chassis makes it well suited to network closets, server racks, offices, retail locations and other business installations.

SmartConnect Web-Based Management

Built-in SmartConnect provides convenient web-based management capabilities, helping administrators monitor supported UPS status information remotely and maintain better visibility into critical power protection equipment.

Automatic Voltage Regulation

Automatic Voltage Regulation (AVR) helps correct utility voltage fluctuations without immediately switching to battery operation. This helps preserve battery capacity for actual outages while maintaining stable power for connected equipment.

Pure Sine-Wave Battery Output

During battery operation, the SMT1000RM2UC provides pure sine-wave output, helping deliver strong compatibility with active-PFC power supplies, servers and other sensitive electronic equipment.

Six NEMA 5-15R Outlets

Six NEMA 5-15R AC outlets provide connections for multiple protected devices. The UPS uses a NEMA 5-15P input plug, making it suitable for compatible 120V rack installations.

SmartSlot & Switched Outlet Group

The integrated SmartSlot allows compatible APC management cards to be added when expanded UPS management capabilities are required. A separately controlled switched outlet group can also support discrete rebooting, sequenced power control and non-critical load shedding.

Intelligent Battery Management

The SMT1000RM2UC uses sealed lead-acid VRLA battery technology with temperature-compensated charging, automatic battery testing and predictive battery replacement information. The battery is hot-swappable and has an approximate recharge time of 3 hours.

Energy-Efficient Green Mode

APC's Green Mode bypasses unused electrical components during good utility conditions to help achieve high operating efficiency. A built-in energy meter also provides actual kilowatt-hour usage information for energy-conscious users.

Technical Specifications

Smart Rackmount UPS Protection for Servers & Networking

With 1000VA / 700W capacity, AVR, pure sine-wave battery output, SmartConnect management, SmartSlot expansion and six NEMA 5-15R outlets, the APC SMT1000RM2UC provides dependable power protection in a compact 2U rackmount platform.

Runtime Note

UPS battery runtime varies based on connected equipment and total power load. Verify the combined wattage of your equipment and required backup runtime when selecting a UPS.
